DFN Distal Femur Intramedullary Nail (Spiral Blade Screw Type) – Innovative Fracture Stabilization Solution
This advanced orthopedic implant system is specifically engineered for optimal fixation of distal femur fractures. The unique spiral blade screw configuration provides exceptional rotational stability while the retrograde insertion approach offers minimally invasive benefits.
Spiral Locking
Unique distal locking options The unique distal combination holes can used with standard locking screw or Spiral blade screw.
Standard Locking
Intramedullary Fixation Principle: Load-sharing, central placement reduces stress concentration compared to plates, lowering implant failure risk.
Diameter Length
Different diameters and lengths. Diameter from 9.5, 10, 11mm with length 160mm-400mm for different clinical needs.

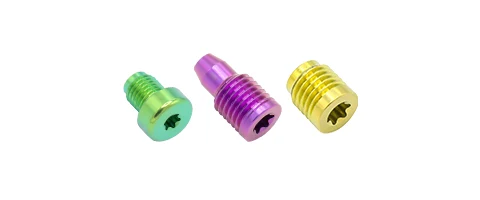

End Cap Types
Three different end cap meet the different requirements of the locking the spiral blade screw and standard locking screw.
|
Product Name:
|
Expert R/AFN. Retrograde /Antegrade Femoral Nail
|
|
Product Code:
|
T1100-41
|
|
Material:
|
Titanium
|
|
Matching:
|
Expert R/AFN. Instrument Set
|
|
Laser Mark：
|
Free and customization available
|
DFN Distal Femur Intramedullary Nail
Used for fixing distal femur fractures, featuring a spiral blade screw design for stable fixation.
Spiral Blade Screw
A specially designed screw to enhance the fixation effect of the intramedullary nail, suitable for various specifications.
6.0mm Locking Screw
6.0mm diameter locking screw used to strengthen the locking of the intramedullary nail, ensuring the stability of the fracture site.
6.0 Locking Screw End Cap
Used for the end cap of the 6.0mm locking screw to prevent loosening and ensure the fixation effect.
Spiral Blade Screw End Cap
Used for the end cap of the spiral blade screw to ensure the stability and safety of the screw.
5.0mm Locking Screw
5.0mm diameter locking screw used to strengthen the locking of the intramedullary nail, suitable for various specifications.
|
Product Name
|
Specification
|
|
DFN Distal Femur Intramedullary Nail (Spiral Blade Screw Type)
|
10*160/180/200/220/240/260/280/300/320/340/360/380/400mm
|
|
11*160/180/200/220/240/260/280/300/320/340/360/380/400mm
|
|
|
12*160/180/200/220/240/260/280/300/320/340/360/380/400mm
|
|
|
9.5*320/340/360/380/400/280/300/320/340/360/380/200/300mm
|
|
|
Spiral Blade Screw
|
12.5*40/45/50/55/60/65/70/75/80/85/90mm
|
|
6.0mm Locking Screw
|
6.0*40/45/50/55/60/65/70/75/80/85/90mm
|
|
6.0 Locking Screw End Cap
|
6.0*0/5mm
|
|
Spiral Blade Screw End Cap
|
9*180/200/220/240mm
|
|
5.0mm Locking Screw
|
5.0*30/32/34/36/38/40/42/44/46/48/50/52/54/56/58/60/62/64/66/68/70/72/74/76/78/80mm
|
X-Ray

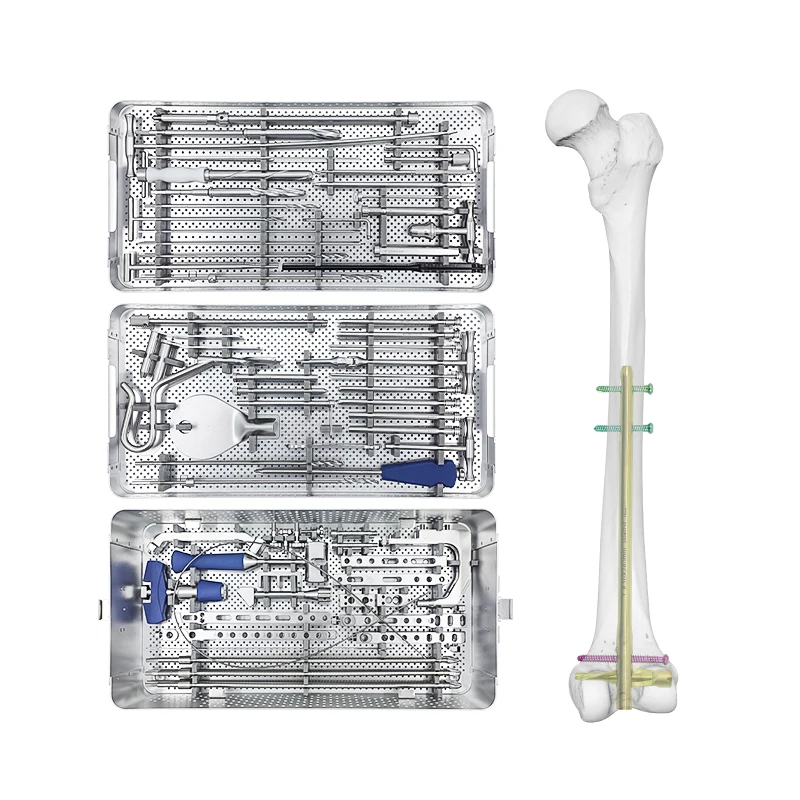

DFN Distal Femur Intramedullary Nail (Spiral Blade Screw Type) Instrument Set
